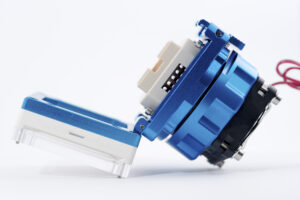

Test Sockets

High-performance test sockets for characterisation and high volume applications with standard and custom package types supported. Offering lower cost of ownership, quality in every step of the process, and competitive lead-times for a shorter time to market.

Capabilities overview:

  • Package types : BGA, LGA, QFP, QFN, and Custom Modules

    • PTSL has the capability to design custom contactors for unique packages

  • Pin for force range: 14 to 40 gf

  • Inductance: 0.4 nH or above

  • Tips types: crown and pointed/wedge

  • Pitch supported: 0.4 mm and above

  • Pin stroke range: 0.4 to 0.8mm

  • Lifetime:

    • Bench data up to 300k with zero failures
    • Customer data >1m

  • Competitive lead-times. With POD, pin map and CK details, PTSL can deliver:

    • Preliminary pricing in <2 days
    • Preliminary drawings in <4 days
    • From drawing approval, hardware delivered in <4 weeks
